SMT Production Line Equipment Price and Configuration Guide

Surface Mount Technology (SMT) production lines serve as the backbone of modern electronics manufacturing, enabling high-speed, precise component placement and soldering on Printed Circuit Boards (PCBs). This comprehensive guide details essential SMT production line equipment, their price ranges, and tailored configuration recommendations to help businesses optimize their investment.

1. Core SMT Equipment and Price Ranges

1.1 PCB Loader

Function: Automatically feeds bare PCBs into the SMT assembly line, eliminating manual handling and reducing production bottlenecks.Price Range: $1,000–$15,000, varying by automation level, load capacity, and brand reputation. Entry-level models suit small-batch operations, while high-speed loaders support continuous mass production.

1.2 Solder Paste Printer

Function: Deposits precise volumes of solder paste onto PCB pads, forming the foundation for reliable component soldering.Price Range: Semi-automatic printers cost $3,000–$8,000, ideal for prototyping and low-volume production. Fully automatic high-precision printers range from $30,000–$80,000, offering advanced vision alignment and consistent paste deposition for fine-pitch components.

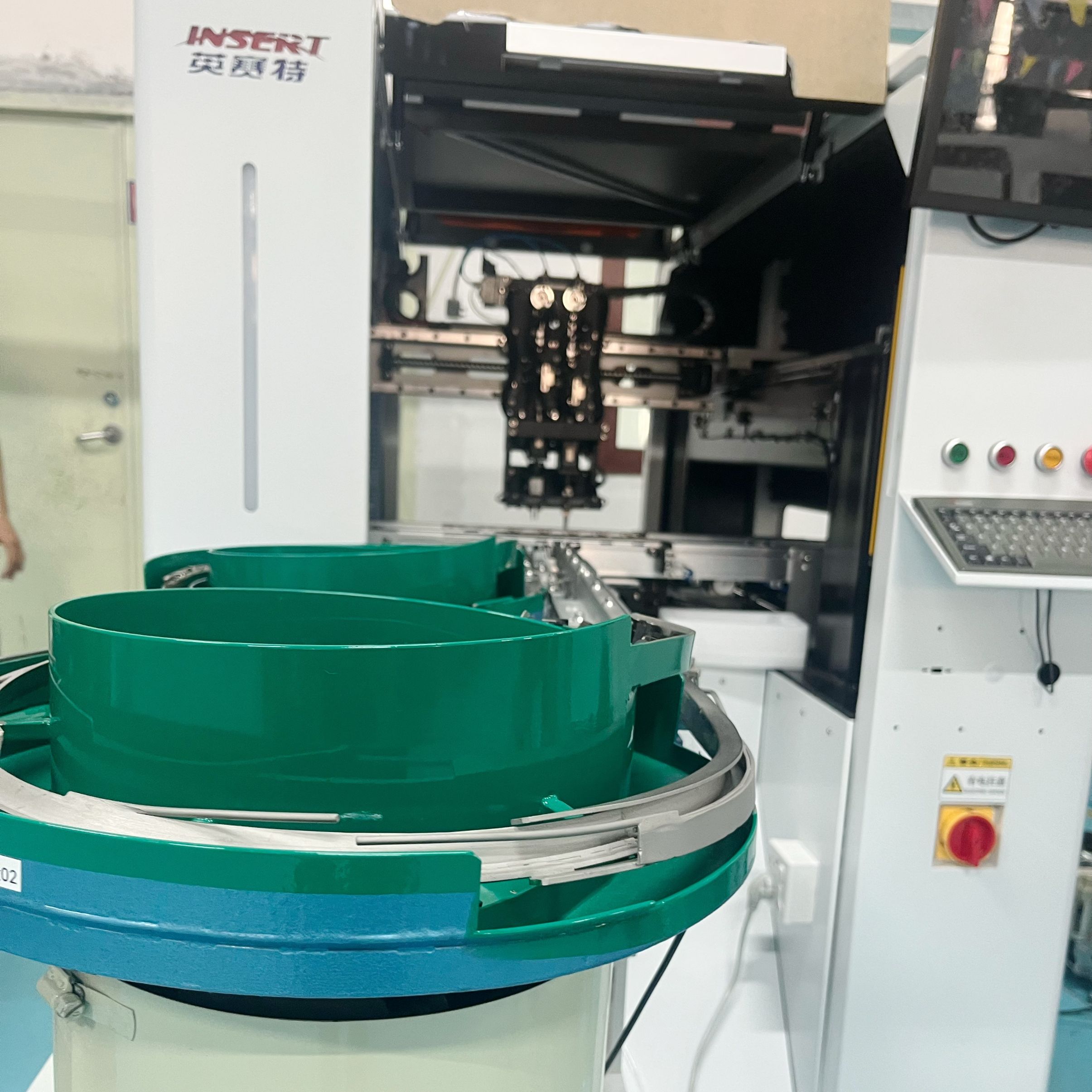

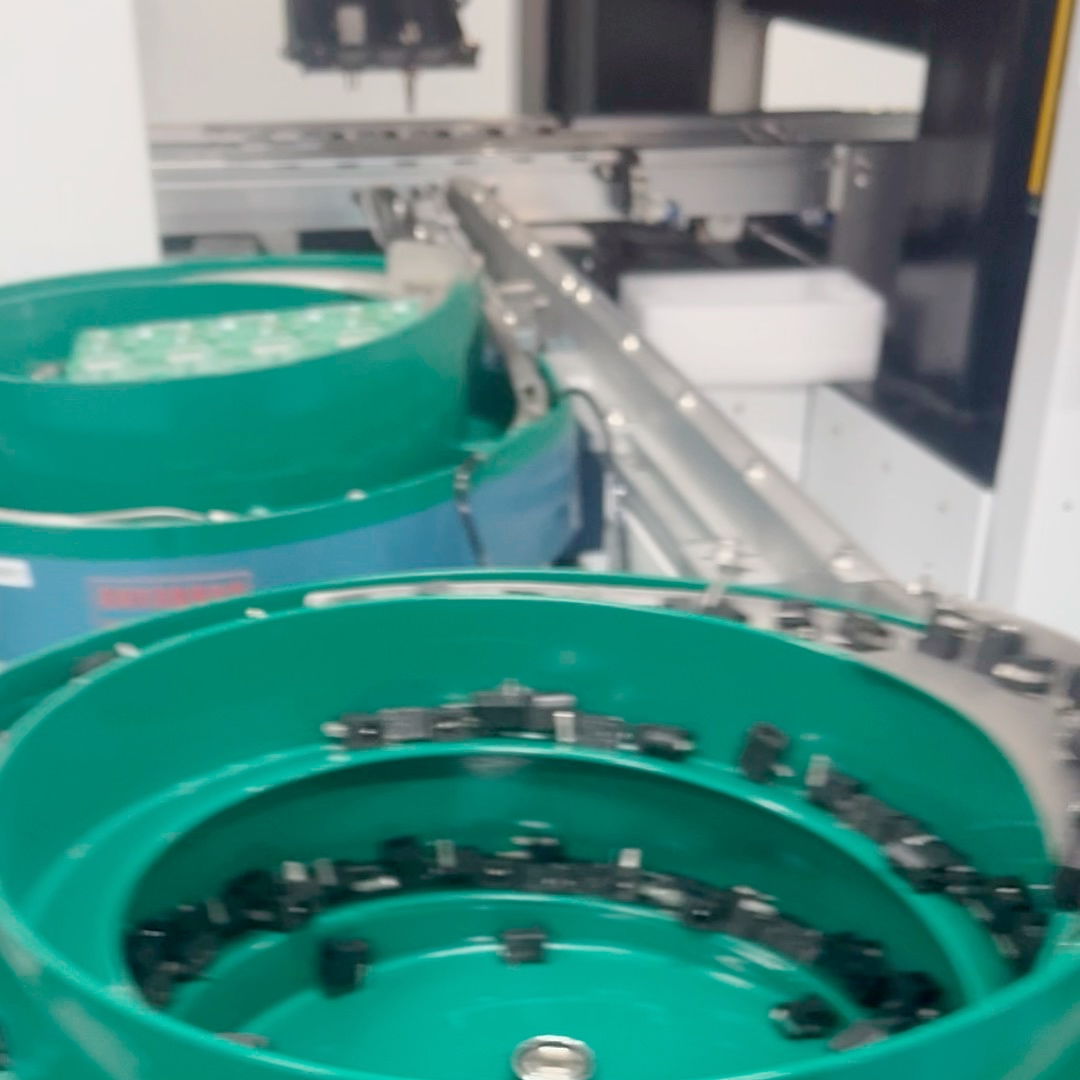

1.3 SMT Pick and Place Machine

Function: The heart of any SMT line, accurately placing surface mount components onto prepared PCB pads.Price Range: Entry-level machines for small-scale production cost $15,000–$50,000. Mid-range high-speed models range from $100,000–$300,000, while top-tier multi-head systems for high-density assembly can exceed $500,000. Pricing depends on placement speed, accuracy, component compatibility, and feeder capacity.

1.4 Reflow Oven

Function: Creates controlled thermal environments to melt solder paste, forming permanent electrical and mechanical connections between components and PCBs.Price Range: Small benchtop reflow ovens start at $5,000. Industrial multi-zone convection ovens with precise temperature profiling range from $20,000–$100,000, based on zone count, conveyor width, and thermal uniformity.

1.5 Automated Optical Inspection (AOI) System

Function: Detects soldering defects, component misplacements, and polarity errors post-reflow, ensuring product quality and reducing rework costs.Price Range: Basic AOI systems cost $10,000–$30,000. High-speed, high-resolution models with advanced AI defect detection range from $40,000–$100,000.

1.6 Auxiliary SMT Equipment

Solder Paste Inspection (SPI): Verifies solder paste volume and alignment before component placement, preventing up to 70% of SMT defects. Price: $15,000–$50,000.

Conveyors and Transfer Systems: Facilitate PCB movement between production stations. Price: $2,000–$10,000 per unit.

Buffer Stations and NG Buffers: Temporarily store good and defective PCBs to maintain line flow. Price: $3,000–$15,000.

2. SMT Line Configuration Recommendations

2.1 Small-Scale R&D and Prototyping Line

Configuration: PCB loader + semi-automatic solder paste printer + precision vision pick and place machine + benchtop reflow oven + entry-level AOI.Suitable For: Monthly production <1,000 boards, product development, and small-batch prototyping. This configuration balances flexibility and cost-effectiveness for frequent design changes.

2.2 Medium-Scale Production Line

Configuration: Automatic PCB loader + fully automatic solder paste printer + high-speed multifunctional pick and place machine + 8-zone reflow oven + AOI + SPI + buffer stations.Suitable For: Monthly production 1,000–3,000 boards, multi-variant medium-batch manufacturing. This setup delivers consistent quality and throughput for diverse product portfolios.

2.3 Large-Scale High-Volume Line

Configuration: Multiple high-speed pick and place machines + dual reflow ovens + inline AOI/SPI systems + advanced material handling + centralized automation control.Suitable For: Monthly production >3,000 boards, high-density consumer electronics, and automotive component manufacturing. This configuration maximizes throughput while maintaining strict quality standards.

3. SMT Equipment Purchasing Strategies

Align with Actual Needs: Evaluate production volume, component types, and PCB complexity to avoid over-investment in unnecessary features.

Prioritize Performance and Durability: Choose equipment with proven reliability to minimize downtime and maintenance costs over the machine’s lifecycle.

Evaluate After-Sales Support: Select suppliers offering comprehensive technical support, spare parts availability, and operator training programs.

Consider Used Equipment: Well-maintained pre-owned SMT machines can reduce initial investment by 30–50%, but always verify machine condition and remaining service life.

By carefully selecting SMT equipment and configurations based on specific business requirements, manufacturers can achieve optimal production efficiency, product quality, and return on investment in the competitive electronics manufacturing landscape.
