SMT Automatic PCBA On-line Cleaning Machine
Cleaning Machine
An on-line cleaning system designed for continuous PCBA residue removal in SMT production lines.
a. Continuous in-line cleaning without stopping production
b. Multi-stage chemical and DI water cleaning process
c. Stable cleaning for high-volume SMT output
d. Integrated drying for immediate downstream handling
e. Designed for dense and complex PCB assemblies
f. Compatible with automated SMT line layouts
g. Supported by I.C.T global line engineering service
Model: SX-D1000
Continuous PCBA Cleaning for SMT Lines
The PCBA On-line Cleaning Machine is designed for manufacturers who require consistent cleaning quality while maintaining uninterrupted SMT production flow. Installed directly after reflow soldering or inspection, the system performs chemical cleaning, rinsing, and drying in a single continuous process. This approach eliminates manual handling and batch delays commonly associated with off-line cleaning. As a PCBA On-line Cleaning Machine, it supports high-volume and high-repeatability manufacturing environments where takt time and stability are critical. The system is widely applied in consumer electronics, LED products, and industrial control assemblies, helping manufacturers control residue-related risks while keeping production efficiency at a predictable level.
Feature
The cleaning room is designed as a fully enclosed in-line chamber that supports continuous conveyor-based operation. PCBAs pass through multiple spray zones where cleaning liquid is applied evenly from adjustable nozzles. This structure allows residues beneath components and around solder joints to be removed without interrupting board movement. The enclosed design improves process stability and operator safety while preventing external contamination. For on-line cleaning applications, the cleaning room ensures consistent exposure time and spray coverage, even when board sizes or layouts change frequently in daily production.
The circulation pipe system is designed to maintain stable liquid flow and pressure throughout long production runs. Cleaning liquid is distributed evenly across spray zones and then collected for filtration and reuse. Multiple filtration stages prevent particles and residues from re-entering the cleaning process. This circulation structure supports predictable cleaning performance and reduces liquid consumption. In continuous SMT environments, stable circulation is essential to avoid variation between boards and shifts. The system is engineered to support long-term operation with minimal maintenance interruption.
Our Certification
IST equipment is designed and manufactured in compliance with global standards. Certifications include CE and RoHS, supporting safety and environmental requirements, as well as ISO9001 for quality management systems. Multiple patents demonstrate continuous technical improvement. These certifications help customers meet regulatory requirements and support stable deployment of equipment across different regions and markets.
About IST and SMT Factory

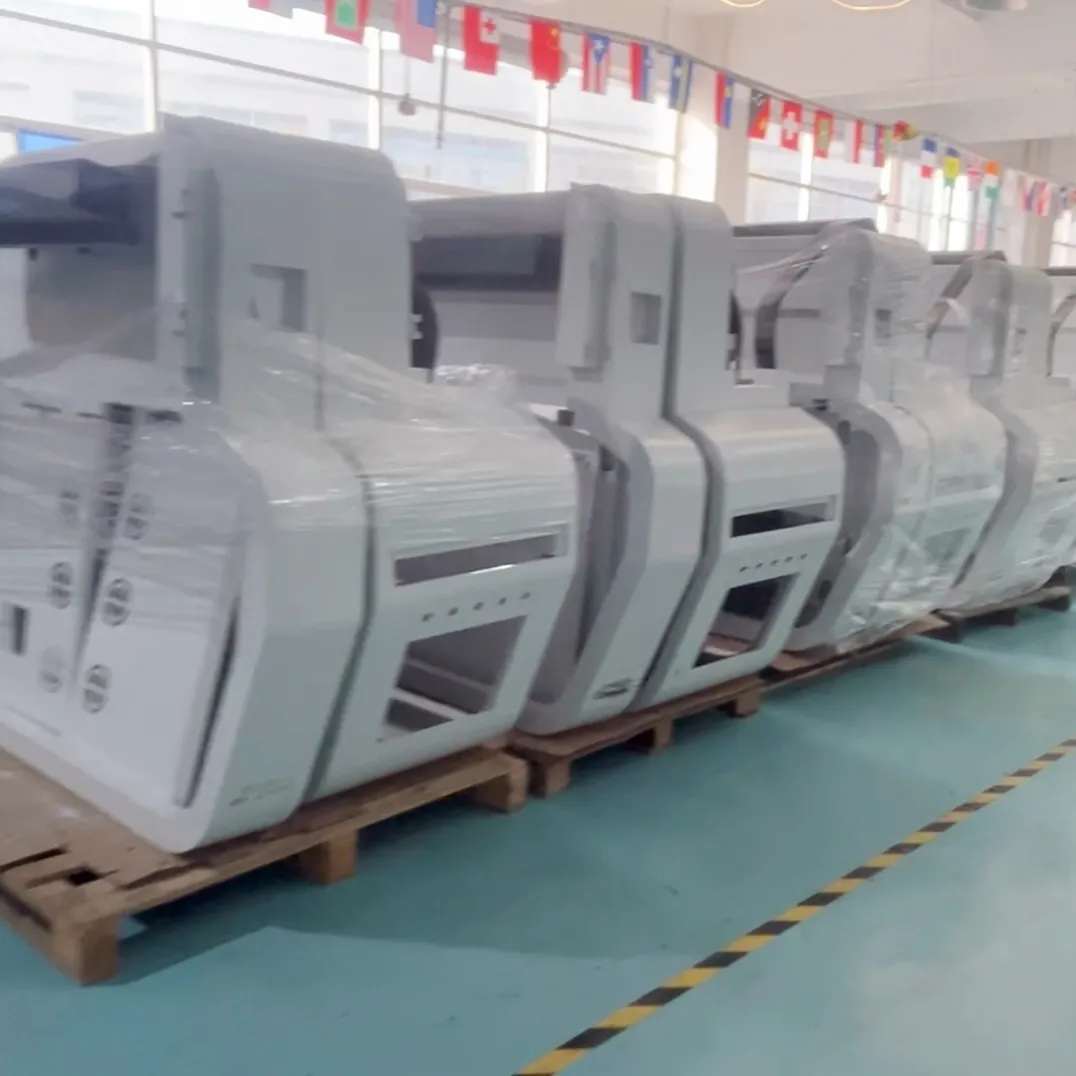

IST is a professional manufacturer and solution provider specializing in SMT, DIP, and electronic assembly production lines. With strong in-house research, engineering, and manufacturing capabilities, the company supports customers worldwide. IST employs a large technical team and continues to expand globally. Strict inspection and quality control processes ensure reliable equipment performance. Through extensive project experience,IST helps customers build efficient, scalable, and stable manufacturing systems.
