PCB dispensing machine New
Visual system positioning, coordinate file import.
PCB dispensing machine
Applicable scenarios:
- Component fixation before wave soldering
- Auxiliary in double-sided reflow soldering process
- Temporary fixation and packaging
- Other special electronic assembly applications
The core advantages of the red glue dispensing machine
- High precision and consistency: Moder dispensing machines are mostly fiully automatic, located by a visual system, which can achieve extremely high precision dispensing, ensuring that the amount and position of glue at each point are consistent.
- High flexibility and efficiency: Through software programming, different products can be quickly switched for production, greatly reducing line changing time and improving production efficiency.
- lmprove product quality and reliability: effectively prevent component detachment during wave soldering, reduce welding failure rate, and enhance the mechanical strength and seismic performance of the product.
4.Cost savings: Reduced rework and material waste caused by component detachment, and overall lowered production costs.
High speed piezoelectric dispensing valve

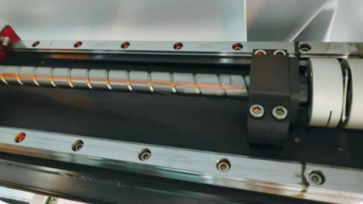

Imported guide rail screw

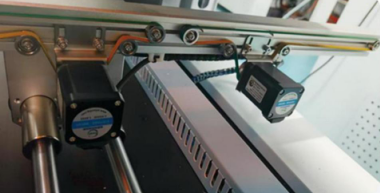

Brushless stepper belt motor
Equipment parameters
Machine model: SX-H1000 Equipment parameters
Equipment dime: Length 1640mm* Width 1590mm * Height 1890mm
Equipment weight (KG): 1200KG
Power parameters: 220V AC (single-phase) 50/60HZ 2KW (energy-saving type)
Gas parameters: 0.6Mpa-0.8Mpa 0.3m3/min
Environmental temperature for use: 0-25°
Equipment noise: 65 decibels
safety protection: Security gates, software anti error algorithm protection
theoretical speed: 18000 PCS/H
PPM: 60PPM
Substrate size (mm): Minimum 50mm* 50mm, maximum 430mm* 450mm,Substrate thickness (mm): Substrate thickness 0.97mm-2.36mm, Number of dispensing heads: Single axis and dual axis options are available Programming method: Visual system positioning, coordinate file import.
